ERG-SX
| Pressure Class | PN5 |
| Inlet Pressure Range | 0.5 – 5 bar |
| Outlet Pressure Range | 12 mbar – 35 mbar |
| Flow Range | 6 m³/h, 10 m³/h, 15 m³/h |
| Structural Additional Features | with UPSO, with Relief Valve |
RMS-B
| Specification | Value |
|---|---|
| Inlet Pressure Range | 25-6 bar and/or 19-6 bar |
| Outlet Pressure Range | 4 barg |
RMS-A
| Inlet Pressure Range | 75 – 80 bar |
| Outlet Pressure Range | 50 – 12 bar |
400 M3/H SERVICE STATION
| Inlet Pressure Range | 1-4 bar |
| Outlet Pressure Range | 300 mbar |

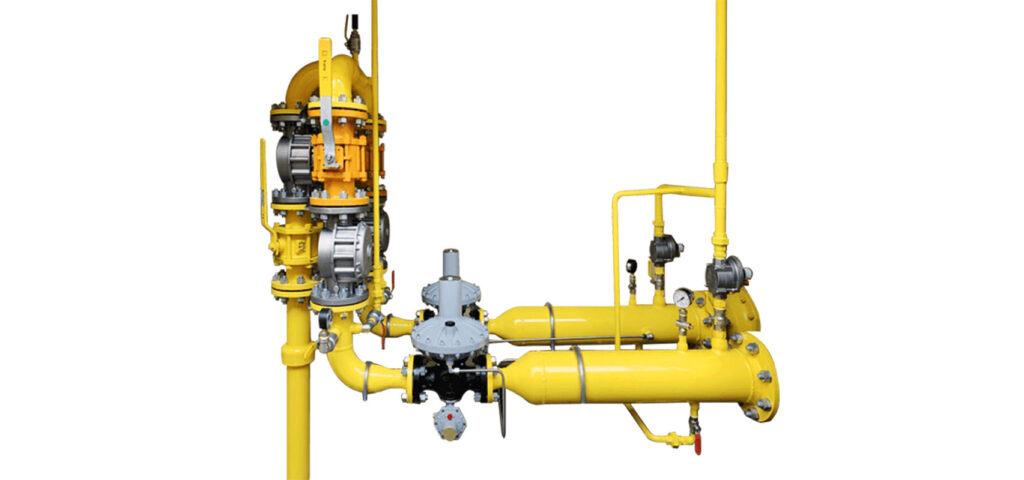

Medium Pressure Regulation and Measuring Station
| Inlet Pressure Range | 19 – 6 bar |
| Outlet Pressure | 4 bar |
| Capacity | 5000 m³/h |
RMS-C
| Inlet Pressure Range | 6-4 bar |
| Outlet Pressure Range | 300 mbar |
EMV
| Pressure Class | PN0.5 (0.5 bar) |
| Size | ½” up to 2” threaded (female) and DN65, DN80, DN100 flanged |
| Position | Normally Open |
| Reset | Manually |
| Temperature Range | -23°C to +51°C |
EGV
| Pressure Class | PN0.5 |
| Size | ½” up to 2” threaded (female) and DN65, DN80, DN100 flanged |
| Position | Normally Open |
| Reset | Manually |
| Temperature Range | -20°C to +60°C |
KF Brass Ball Valve
| Type | Isolation & Appliance Ball valves |
| Material of Construction (MOC) | Brass |
| Handle | Lever handle/Butterfly Handle |
| Threading | BSP/NPT/BSPT |
| Sizes | DN15 to DN50 |
EGF-H
| Pressure Class | PN6 |
| Connection | ½” up to 2” threaded (female) |
| Filter | 50 microns (10-20 microns available at request) |
| Temperature Range | -20°C to +60°C |
| Usage | City gas networks and gas pipelines in commercial & industrial areas |
