Archives: Product

EGF

Pressure Class	PN1
Size	½” up to 2” threaded (female) and DN65, DN80, DN100 flanged
Filter	50 microns (10-20 microns available at request)
Temperature Range	-20°C to +60°C
Usage	City gas networks and gas pipelines in commercial & industrial areas

ZEVS Series

Position	Normally Closed, Energized to open
Valve Speed	Slow Open Fast Close Type (SOFC)
Operation Type	Automatic On/OFF
Supply Voltage	230 VAC (-15%+10%) 50/60Hz
Sizes	DN10 (3/8”) to DN200 (8”)

ZEVR Series

Position	Normally Closed, Energized to open
Valve Speed	Fast Open Fast Close Type (FOFC)
Operation Type	Automatic On/OFF
Supply Voltage	230 VAC (-15%+10%) 50/60Hz
Sizes	DN10 (3/8”) to DN200 (8”)

ZEV Series

Position	Normally Closed, Energized to open
Valve Speed	Fast Open Fast Close Type (FOFC)
Operation Type	Automatic On/OFF
Supply Voltage	12VDC to 230 VAC 50/60Hz
Sizes	DN10 (3/8”) to DN200 (8”)

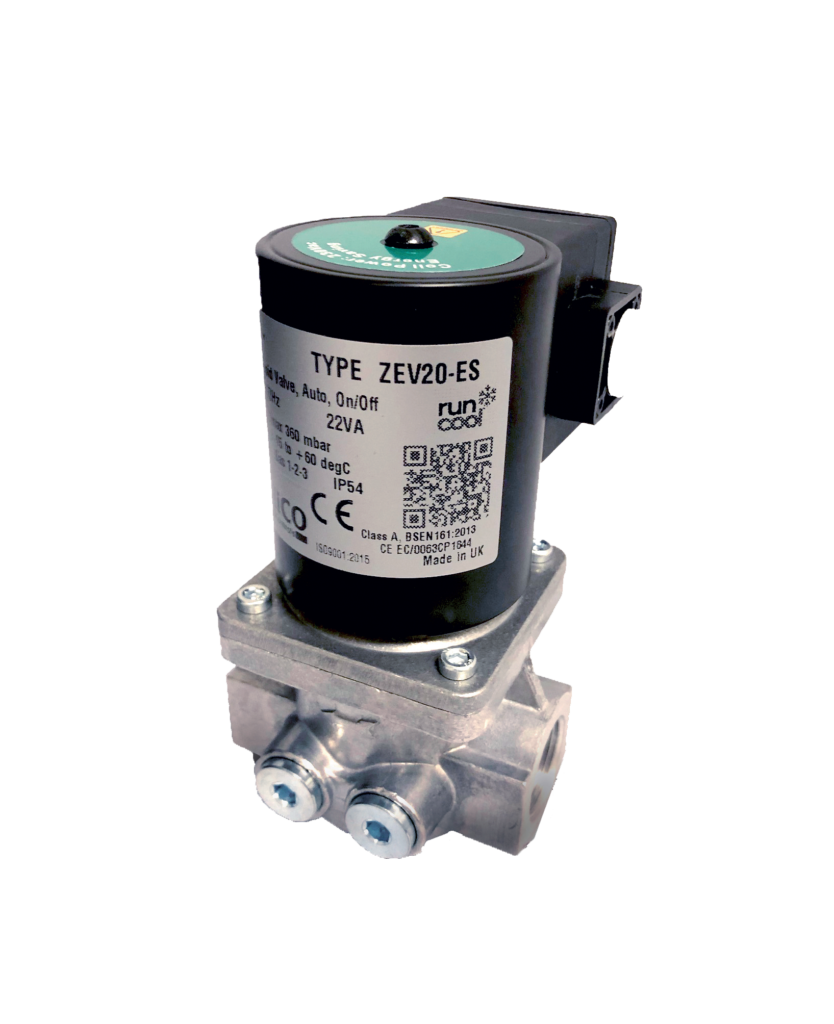

ZEV Series – Energy Saving

Position Normally Closed, Energized to open Valve Speed Fast Open Fast Close Type (FOFC) Operation Type Automatic On/OFF Supply Voltage 230 VAC 50/60Hz Sizes DN10 to DN80

MacR6

Type	Digital Data Logger
Atex Certification	Up to Zone 0
Compatibility	Diaphragm, RPD & Turbine Meters (Pulse Based)
Modem	Inbuilt GSM/GPRS
Battery Life	Up to 5 years

MacR6-Z0-P

Type	Pressure Logger
Atex Certification	Zone 0
Pressure Range	0.8 – 100 bar (optional)
Modem	Inbuilt GSM/GPRS
Battery Life	Up to 5 years

MacREJ 5

Type	Advanced data logger
Atex Certification	Zone 0
Parameters	Transmits Inlet & Outlet Pressure, Volume, Flow Temperature, Energy
Compatibility	Diaphragm, RPD & Turbine Gas Meters (Pulse Based)
Modem	Inbuilt GSM/GPRS

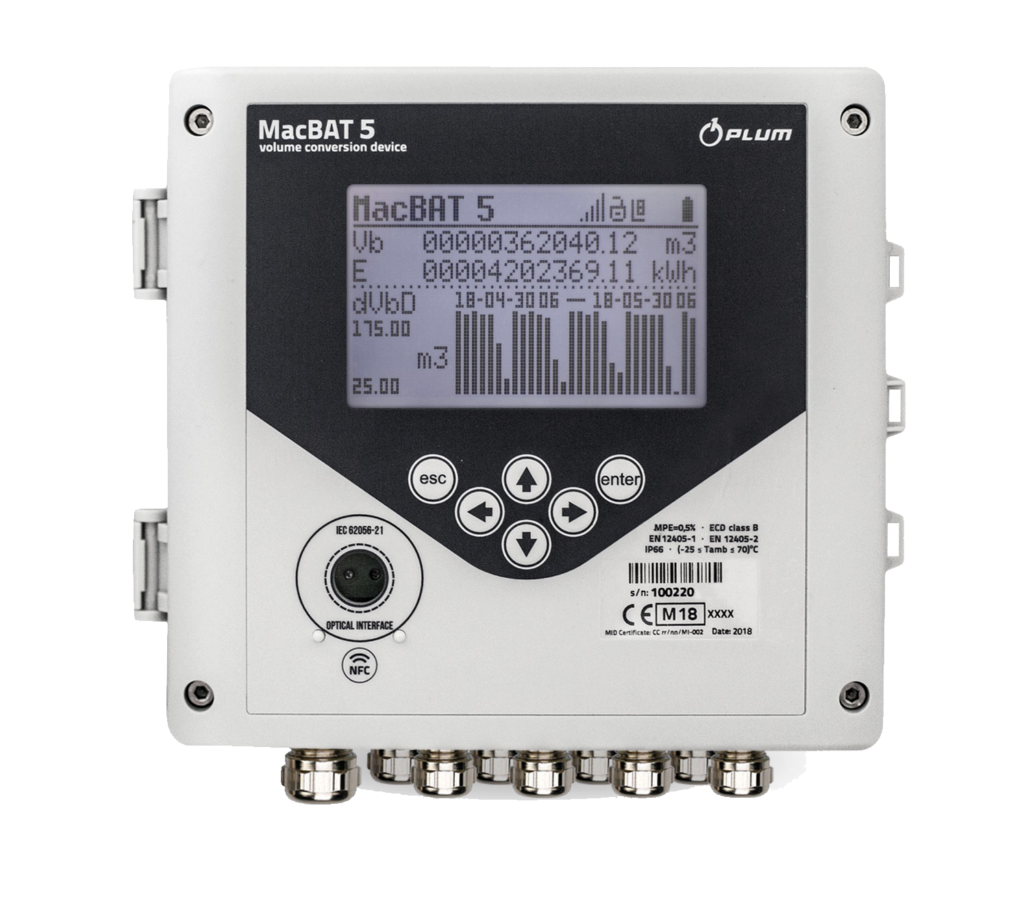

MacBAT 5

Type	Electronic volume corrector
Atex Certification	Zone 0
Pressure Range	0.8 – 100 bar (Optional)
Temperature Range	-25 to +70 °C
Modem	Inbuilt GSM/GPRS/LTE (Optional)

ZT G-1.6s, G-2.5s, G-4s

Flow Range	0.016 – 6 m³/hr
Max. Pressure	500 mbar
Size	¾” BSP/ NPT/ BSPT Threaded
Cyclic Volume	1.2 dm³
Smart Compatibility	Yes (Inbuilt Smart Index)
