Single Jet Class B, 15mm-20 (2″-3/4″)

Single Jet Class B, 15mm-20 (2"-3/4")

CONSTRUCTION

  • Highly sensitive to low flow rates and very accurate over its entire flow range.
  • Having low loss of head which allows water to reach upper floors.
  • Sealed against tampering.
  • Totaliser leakproof, totally dry.
  • Long maintenance free life.
  • Self lubricating gears & bearing.
domestic-water-meters-single-jet-class-a-500x500

AQUAMET

An inferential, single jet, super dry, straight reading type, hermetically sealed water meter with magnetic drive.

STANDARDS

Complies with class B of IS-779/94.

OPTIONS

Zenner Water Meters with MID/OIML Mark. Remote reading facility/Pulse output available on request.

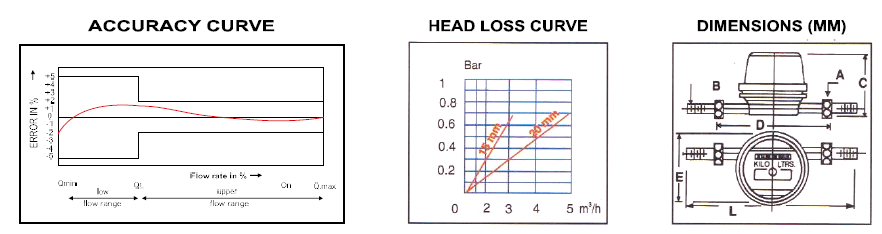

Metrological Characteristics:
Accurac 15mm 20mm
CL-B CL-B CL-B CL-B
Starts Registration at l/h 18 l/h 30
Lower limit of flow, Qmin l/h ±5% l/h 30
Transitional flow, Qt l/h 120 l/h 200
Nominal flow, Qn l/h ±2% l/h 300
Maximum flow, Qmax l/h 3000 l/h 5000
Test pressure Mpa 2 Mpa 2
Temperature suitability °C 50°C °C 50°C
Dial registration kl 99999 kl 99999
Smallest reading I 0.2 I 0.2



Description 15mm 20mm
Meter threads (A) 3/4" BSP 1" BSP
End connection threads (B) ½" BSP ¾" BSP
Length of meter with couplings (L) 250 mm 290 mm
Length of meter without couplings (D) 110 mm 165 mm
Height (C) 79 mm 85 mm
Width (E) 73 mm 79 mm
Weight with couplings 480 gms 680 gms
Metrological Characteristics:
Accurac 15mm 20mm
CL-B CL-B CL-B CL-B
Starts Registration at l/h 18 l/h 30
Lower limit of flow, Qmin l/h ±5% l/h 30
Transitional flow, Qt l/h 120 l/h 200
Nominal flow, Qn l/h ±2% l/h 300
Maximum flow, Qmax l/h 3000 l/h 5000
Test pressure Mpa 2 Mpa 2
Temperature suitability °C 50°C °C 50°C
Dial registration kl 99999 kl 99999
Smallest reading I 0.2 I 0.2



Description 15mm 20mm
Meter threads (A) 3/4" BSP 1" BSP
End connection threads (B) ½" BSP ¾" BSP
Length of meter with couplings (L) 250 mm 290 mm
Length of meter without couplings (D) 110 mm 165 mm
Height (C) 79 mm 85 mm
Width (E) 73 mm 79 mm
Weight with couplings 480 gms 680 gms
