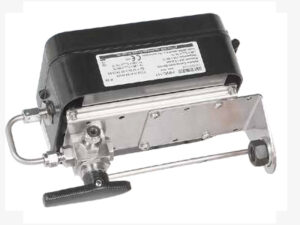

FMG rotary meters can be equipped (optional) with two thermo wells and two pressure tapping points. Therefore the rotary meters can be supplied with an Electronic Volume Conversion Device (EVCD). FMG offers a large variaty in conversion devices so all required data can be provided and the best solution for every project can be assembled.
Refer to the special brochure for more information about the Electronic Volume Conversion Devices FMG is able to supply or contact a local supplier.
Metrological Approvals | - EN12480:2002 compliant - EN12480:2015 compliant - OIML R137 1&2 (2014) compliant - MID 2014/32/EU compliant |
ATEX Approvals | - Sensors: Ex ia IIC T4...T6 Gb (-40°C ≤ Ta ≤ +70°C) - Encoder: Ex ib IIB T3...T6 Gb (-25°C ≤ Ta ≤ +55°C) |
Flow Rates | 0.2 m³/h up to 1000 m³/h |
Nominal Diameters | DN25 to DN200 mm (1” to 8”) |
Mounting Positions | Horizontal or vertical |
Body Compliance | Pressure Equipment Directive (PED) 2014/68/EU |
Temperature Ranges | - ATEX: -25°C to +70°C - MID: -25°C to +70°C (lower on request) - PED: -20°C to +70°C (lower on request) |
Metrological Approvals | - EN12480:2002 compliant - EN12480:2015 compliant - OIML R137 1&2 (2014) compliant - MID 2014/32/EU compliant |
ATEX Approvals | - Sensors: Ex ia IIC T4...T6 Gb (-40°C ≤ Ta ≤ +70°C) - Encoder: Ex ib IIB T3...T6 Gb (-25°C ≤ Ta ≤ +55°C) |
Flow Rates | 0.2 m³/h up to 1000 m³/h |
Nominal Diameters | DN25 to DN200 mm (1” to 8”) |
Mounting Positions | Horizontal or vertical |
Body Compliance | Pressure Equipment Directive (PED) 2014/68/EU |
Temperature Ranges | - ATEX: -25°C to +70°C - MID: -25°C to +70°C (lower on request) - PED: -20°C to +70°C (lower on request) |
Body | Aluminum |
Shafts | Stainless Steel |
Impellers | Aluminum |
Gears | Delrin |
Cartridge | Aluminum |
Index Frame | Aluminum |
Timing Gears | Carbon Steel |
Index Cover | Polycarbonate (ECI) |
Bearings | Carbon Steel / Stainless Steel |
